SMD汽液型多功能染色机 Airflow-Softlow Multifunction Fabric Dyeing Machine

SMD汽液型多功能染色机 Airflow-Softlow Multifunction Fabric Dyeing Machine



1:汽流、溢流、汽液多功能用途、不同面料可选择不同模式处染,降低能耗和提高效益。

2:更少能耗,水比1:2-3,比传统汽液机省水30%以上,节省蒸汽30%以上,省电50%,用工节省40%,同时降低了用工成本和污水处理成本。

3:超大容布量,单管最大载量可达500公斤,单管入布20条,能有效降低成本和减少工厂使用面积,降低总投入成本。

4:高匀染率,特殊的注料系统和主泵循环系统保证单管最大载量的匀染和色差问题。

5:自动化配置高,除传统自动化配置以外还配置了降温水洗、高温水洗、计量水洗、提布轮打滑率转速追踪、缸底与喷嘴温差平衡系统、多级注料混料系统等。

  1. It has multi - functional uses such as steam - flow, overflow, and steam - liquid. Different fabrics can choose different modes for dyeing, which reduces energy consumption and improves efficiency.

  2. It consumes less energy. The water ratio is 1:2 - 3. Compared with traditional steam - liquid machines, it saves more than 30% of water, more than 30% of steam, 50% of electricity, and 40% of labor. At the same time, it reduces labor costs and sewage treatment costs.

  3. It has an ultra - large fabric - holding capacity. The maximum single - tube loading capacity can reach 500 kilograms, and 20 pieces of fabric can be put into a single tube, which can effectively reduce costs, reduce the factory's occupied area, and lower the total investment cost.

  4. It has a high level - dyeing rate. The special injection system and main pump circulation system ensure the level - dyeing and solve the color - difference problem with the maximum single - tube loading capacity.

  5. It has a high - level automation configuration. Besides the traditional automation configuration, it is also equipped with cooling water - washing, high - temperature water - washing, metered water - washing, the speed - tracking system for the slippage rate of the fabric - lifting wheel, the temperature - difference balance system between the bottom of the cylinder and the nozzle, and the multi - stage injection and mixing system, etc.

(孟加拉文)

1: বাষ্পপ্রবাহ, অতিরিক্তপ্রবাহ, বাষ্প - তরলের বহুমুখী কার্যকারিতা, বিভিন্ন ধরণের কাপড় বিভিন্ন মোডের সংশ্লিষ teritor ঋতু - নিশ্চিত করে রঞ্জ করতে পারে, শক্তি - খরচ কমিয়ে এবং সুবিধা বাড়ায়।

2: কম শক্তি - খরচ, পানির অনুপাত 1:2 - 3, ঋতু - সংস্কৃত বাষ্প - তরলের যন্ত্রের তুলনায় 30% - এর বেশি পানি সংরক্ষণ করে এবং 30% - এর বেশি বাষ্প সংরক্ষণ করে এবং 50% - এর বেশি বিদ্যুৎ সংরক্ষণ করে এবং কর্মী - সংখ্যা 40% - এর বেশি সংরক্ষণ করে, সেইসাথে কর্মী - খরচ এবং নল - নিষ্কাশনের খরচ কমিয়ে।

3: অত্যধিক কাপড় - ধারণ - ক্ষমতা, একক নলের সর্বোচ্চ লোড 500 কিলোগ্রামে পৌঁছাতে পারে এবং একক নলে 20টি কাপড় - স্ট্রিপ নিতে পারে, কার্যকরভাবে খরচ কমাতে এবং কারখানার ব্যবহার - কর্মক্ষেত্রের ক্ষেত্রফল কমাতে এবং মোট বিনিয়োগ - খরচ কমাতে পারে।

4: উচ্চ - সুড়ঙ্গের রঞ্জিংের হার, বিশেষ ধরণের পদার্থ - সংযোজন সিস্টেম এবং প্রধান পাম্পের চক্র সিস্টেম নিশ্চিত করে একক নলের সর্বোচ্চ লোডের সুড়ঙ্গের রঞ্জিংের হার এবং রং - পার্থক্যের সমস্যা।

5: উচ্চ - স্বয়ংক্রিয় কনফিগারেশন, ঋतু - সংস্কৃত স্ব 겗ংক্রিয় কনফিগারেশন ছাড়াও, ঋতুনashing - জল - ধোয়া, উচ্চ - তাপমাত্রার জল - ধোয়া, পরিমাপের জল - ধোয়া, কাপড় - উত্তোলন চাকার স্লিপের হারের ঘূর্ণন - সংখ্যার ট্র্যাকিং, চাম্বারের নীচের অংশ এবং নোজেলের তাপমাত্রার পার্থক্যের ভারসাম্য সিস্টেম, বহু - স্তরের পদার্থ - সংযোজনের মিশ্রণ সিস্টেম ইত্যাদি নিযুক্ত করা হয়।

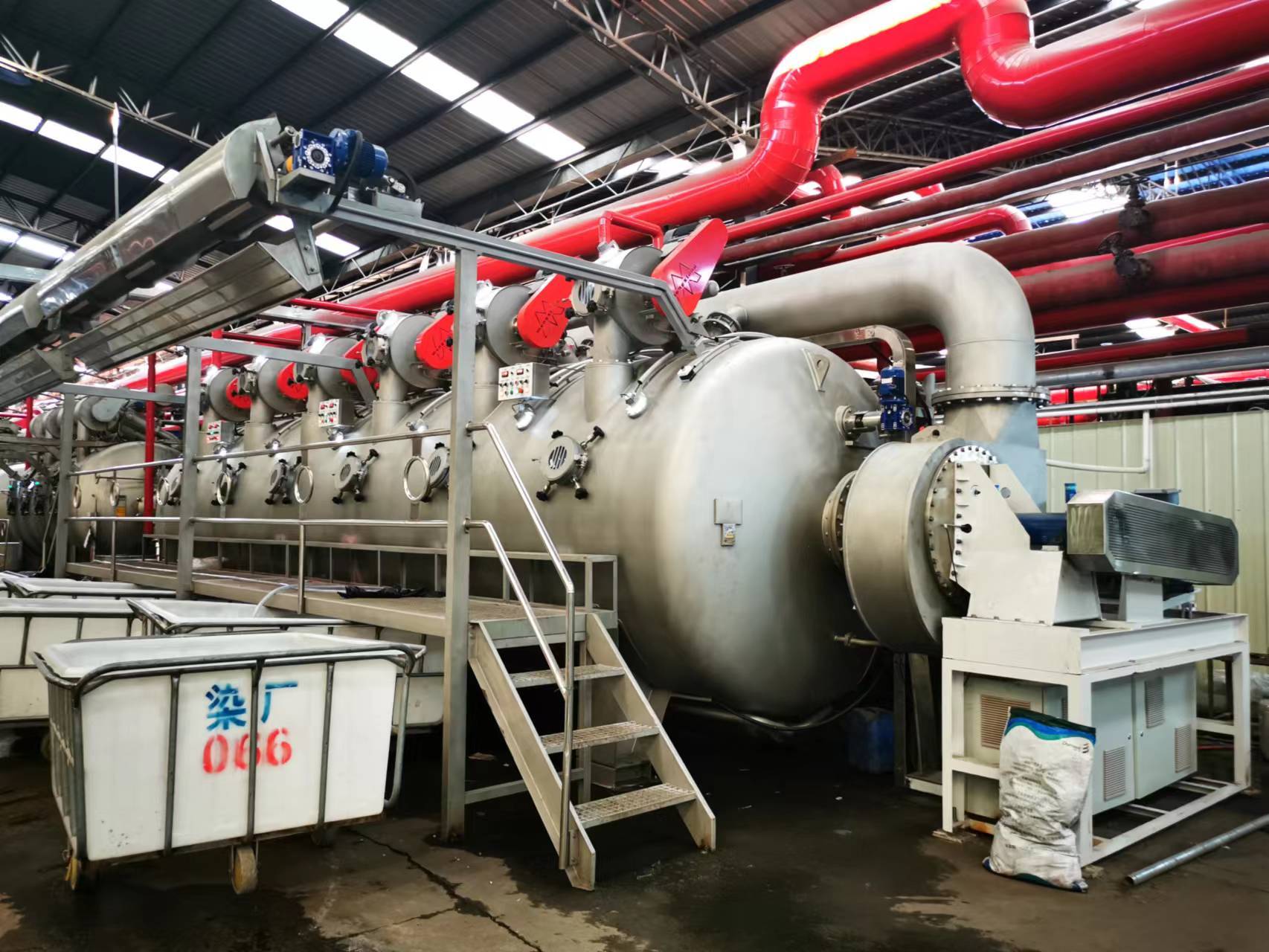

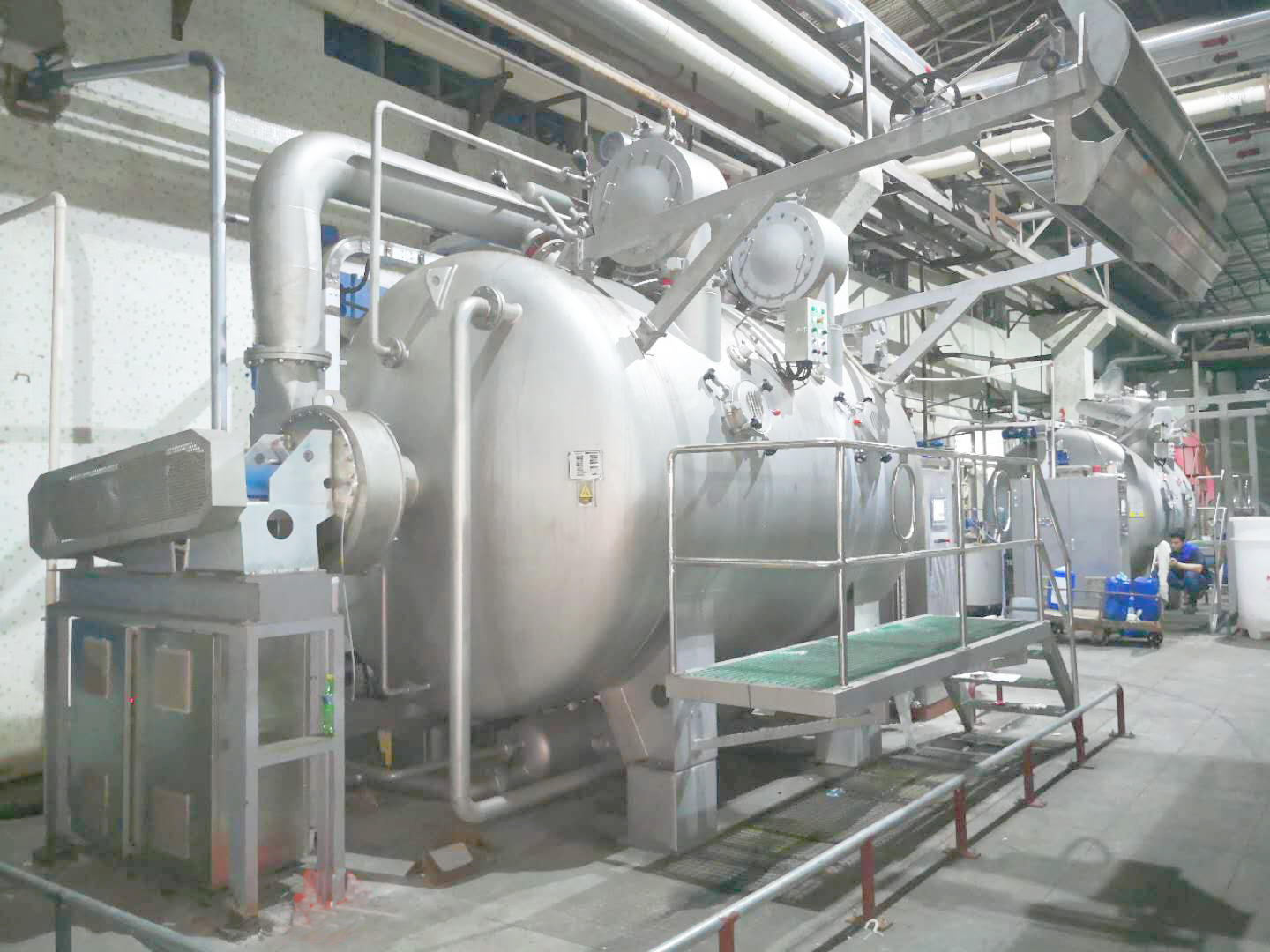

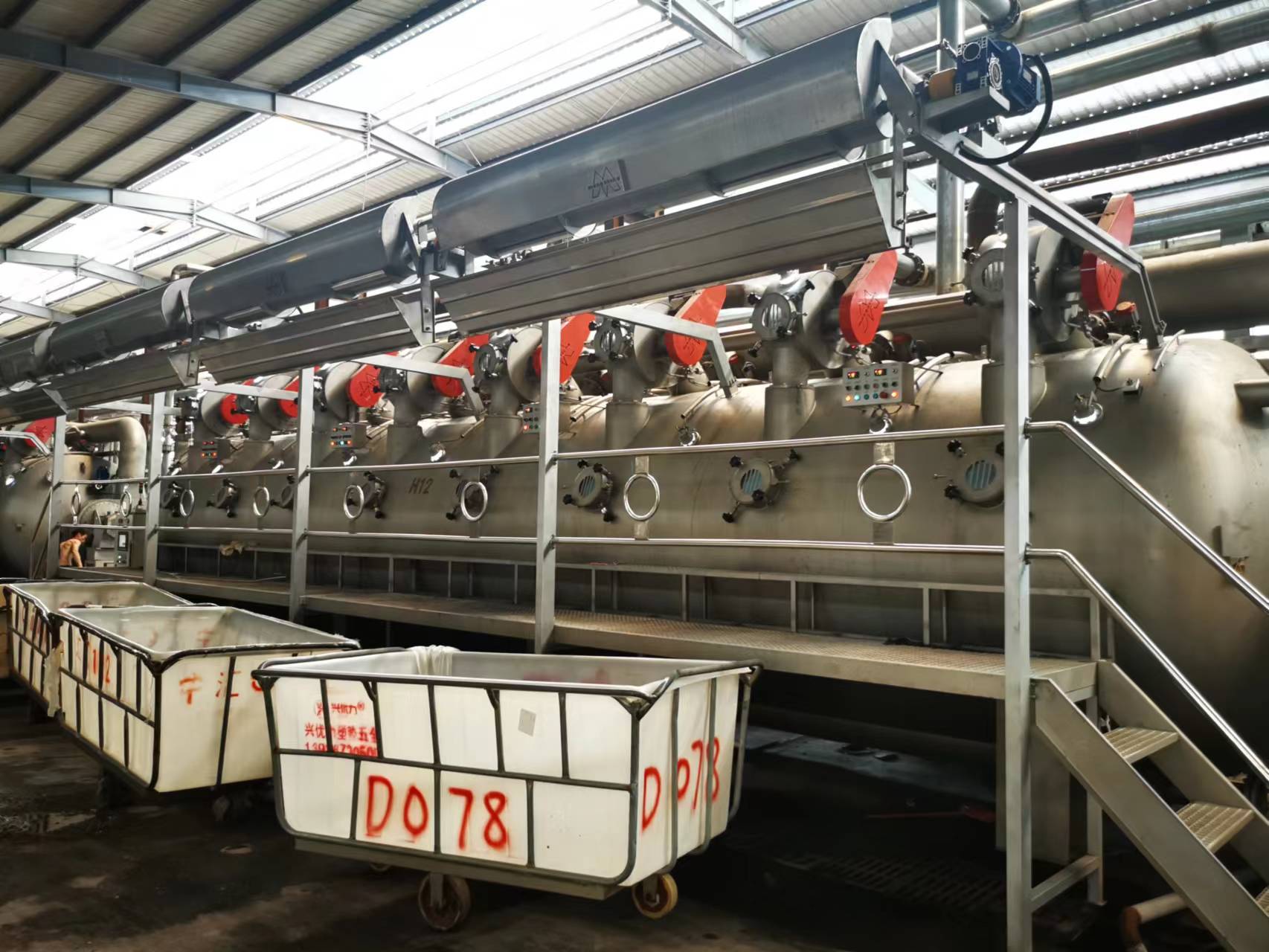

客户现场图
